SharePoint 2016 Products Configuration Wizard failed throwing ‘One or more types failed to load’

Environment: SharePoint 2016 Enterprise RTM, Windows Server 2012 R2

Scenario: Install SharePoint 2016 Enterprise RTM and configure

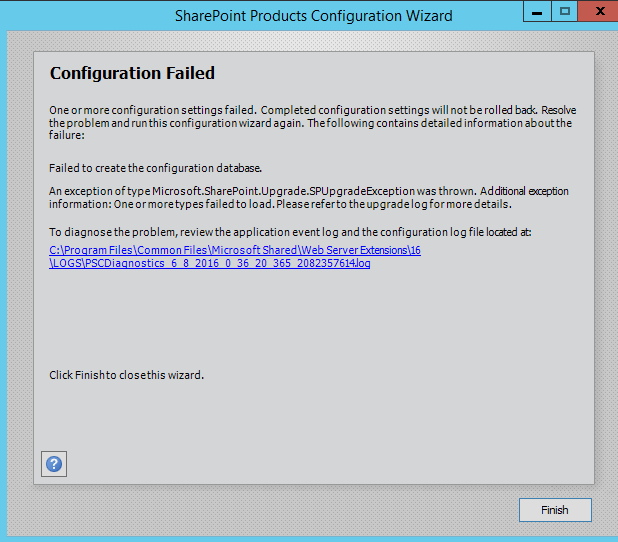

Issue: The SharePoint Products Configuration Wizard failed throwing ‘One or more types failed to load’

Troubleshooting:

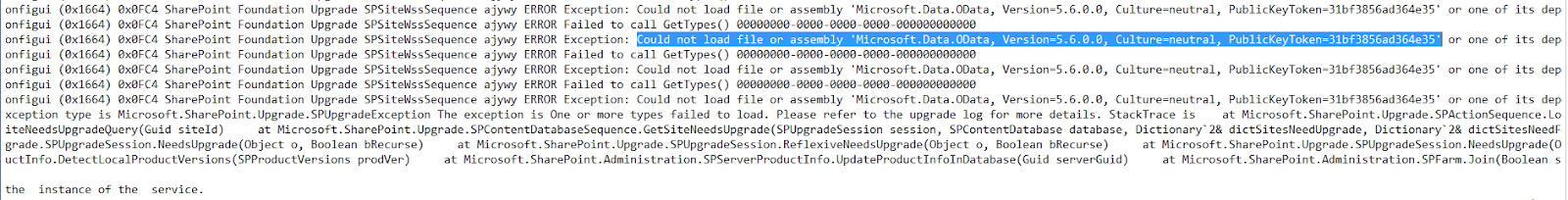

1. Looked into the configuration log file and noticed the following error message

Could not load file or assembly 'Microsoft.Data.OData, Version=5.6.0.0, Culture=neutral’

2. Download and Install the WCF Data Services Client for OData package and NuGet package Manager

https://www.nuget.org/packages/Microsoft.Data.Services.Client/

https://dist.nuget.org/index.html

3. Use NuGet package manager to install the OData package

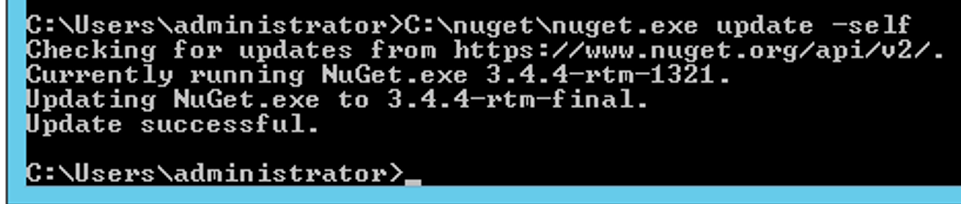

4. Upgrade if you already have NuGet in your machine using following command

Nuget.exe update –self (This automatically get the update from web using your internet)

5. The package can be installed from Visual Studio by navigating to Tools > NuGet Package Manager > Package Manager Console

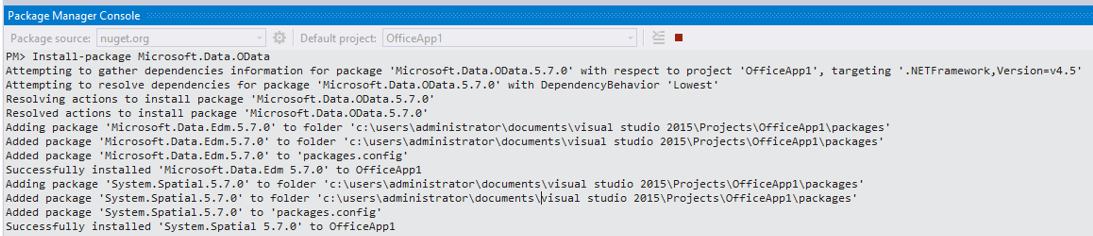

6. Make sure that you open a sample web project and execute the following command to install the package.

Install-package Microsoft.Data.OData

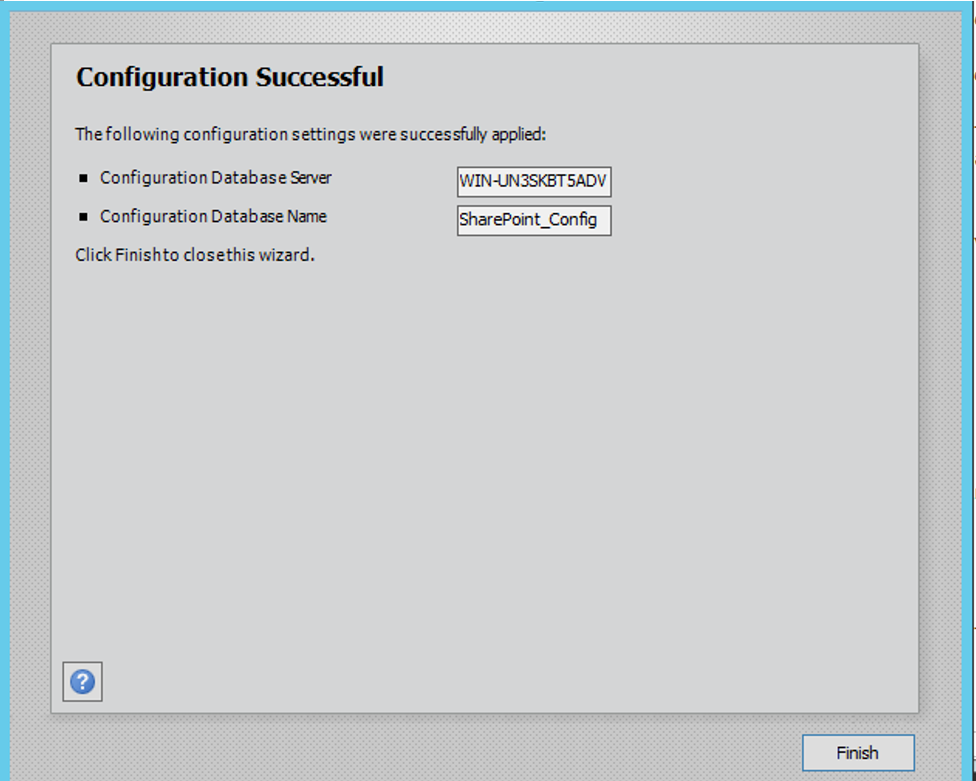

7. Run the configuration wizard again successfully

SharePoint 2016 Configuration Wizard failed with error ‘CacheHostInfo is null’.

Environment: SharePoint 2016 Enterprise RTM, Windows Server 2012 R2

Scenario: Install SharePoint RTM and run configuration wizard

Issue: The installation completed successfully however the SharePoint Products Configuration Wizard failed by throwing cacheHostInfo is null' error.

Troubleshooting:

1. Tried to repair distributed cache on the server by executing the following line of PowerShell script

Get-SPServiceInstance
$s = Get-SPServiceInstance <<Distributed Cache GUID>>
$s.delete()
Add-SPDistributedCacheServiceInstance

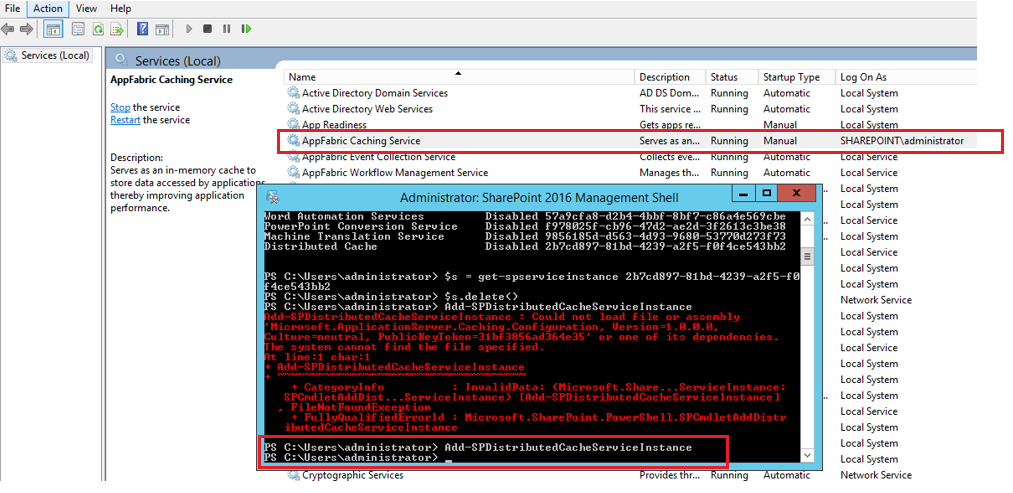

For some reasons, the script throws following error on line Add-SPDistributedCacheServiceInstance

Add-SPDistributedCacheServiceInstance : Could not load file or assembly 'Microsoft. ApplicationServer.Caching.Configuration, Version=1.0.0.0, culture=neutral, PublicKeyToken=31bf3856ad364e35'or one of its dependencies. The system cannot find the file specified.

2. Started AppFabric Caching Service and added the SPDistributedCacheServiceInstance successfully.

3. As running the configuration wizard again failed, downloaded and Installed Cumulative Update 7 (KB3092423) for Microsoft AppFabric 1.1 for Windows Server

https://support.microsoft.com/en-in/kb/3092423

4. Restart the computer after applying this cumulative update package.

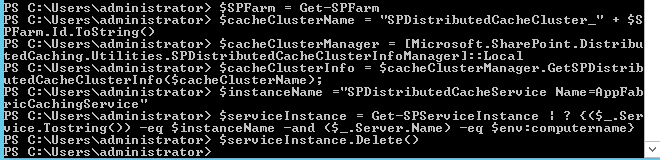

5. After successfully installing the CU package. Execute the following PowerShell script to remove the caching service instance.

$SPFarm = Get-SPFarm

$cacheClusterName = "SPDistributedCacheCluster_" + $SPFarm.Id.ToString()

$cacheClusterManager = [Microsoft.SharePoint.DistributedCaching.Utilities.SPDistributedCacheClusterInfoManager]::Local

$cacheClusterInfo = $cacheClusterManager.GetSPDistributedCacheClusterInfo($cacheClusterName);

$instanceName ="SPDistributedCacheService Name=AppFabricCachingService"

$serviceInstance = Get-SPServiceInstance | ? {($_.Service.Tostring()) -eq $instanceName -and ($_.Server.Name) -eq $env:computername}

$serviceInstance.Delete()

6. Run the Configuration Wizard again and the configuration is successful.

References:

http://www.ceus-now.com/sharepoint-2013-distributed-cache-cachehostinfo-is-null-with-remove-spdistributedcacheserviceinstance/

https://support.microsoft.com/en-in/kb/3092423

Error occurred in deployment step 'Recycle IIS Application Pool': Remote SharePoint site connections are not supported.Parameter name: project

Using SharePoint 2013, Visual Studio 2012

Scenario: Deploy a farm solution from Visual Studio


Issue: Error occurred in deployment step 'Recycle IIS Application Pool': Remote SharePoint site connections are not supported.Parameter name: project


Cause: The Site URL was invalid and the Visual studio failed to deploy the solution

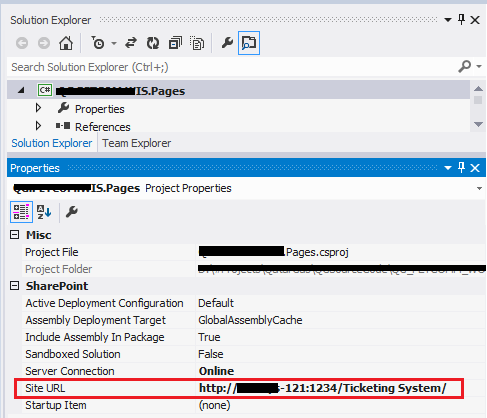

Fix: Go to Project properties and update the correct SharePoint site URL and try to deploy the solution again.
